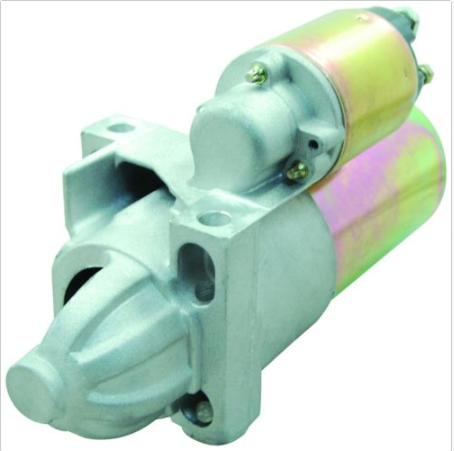

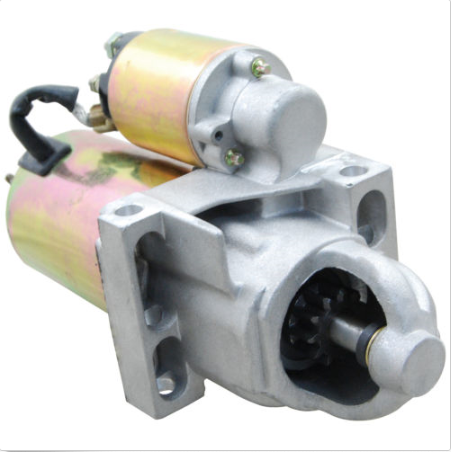

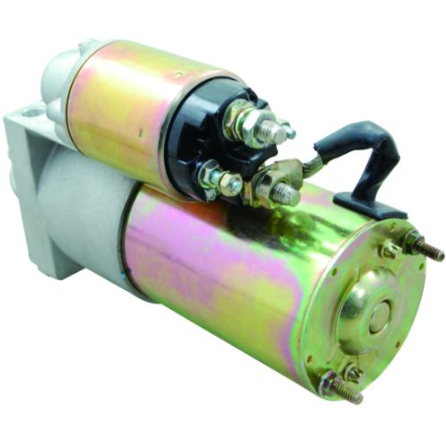

Str-6562N

2018/4/22 19:40:30 5760

Starter

Spec:

SPECS:1.6kW/12 Volt, CW, 11-Tooth Pinion~Delco PG260L PMGR~MFR:DELCO~MFR SERIES:PG260L~DESIGN:PMGR~VOLTAGE:12~KW:1.6~ROTATION:CW~TEETH:11~NOTE 1:Also replaces Delco PG260M Starters: 9000819, 821 (Lester 6560, 6562) however must use 84-1507 mtg. bolt (10mm x 3/8-16 x 4-5/16 L) (Included)~NOTE 2:SAE J1171 Marine Certified~FEATURE 1:100% New~FEATURE 2:OE performance torque & output~FEATURE 3:Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position~FEATURE 4:Zinc plated field case, solenoid, C.E. cover & hardware~FEATURE 5:Armatures are precision balanced & feature banded hairpins~FEATURE 6:Commutators are stake-welded & polished for longer brush life~FEATURE 7:Starter, drive & solenoid are endurance tested

Replaces:

Delco 10465042, 9000762, 9000768, 9000789, 9000819, 9000851, 9000885, 9000886, Hyster 1469604, Letrika Old IS 9313, IS 9314, Mercury Marine 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, Outboard Marine Corp (OMC) 3855177, Prestolite 35261180

Used On:

Caterpillar Ag. & Ind. (1998-2007) ** Clark (1997-2003) ** Daewoo (1998-2006) ** Hyster (1999-2006) ** Mercruiser (1987-2001) ** OMC (1986-1996) ** Pleasurecraft (2001-2004) ** Volvo Penta (1989-2007)

Unit Number:




We are distributor and manufacturer from China and offer wide range of starters, alternators, generators, wiper motors and components. We have all Makes application starter, alternator and parts as of automotive, truck, rail way, fork lift, mining, heavy duty, small motor, ATV, UTV, Golf Cart, Powersports, Motorcycle, marine, Watercraft, Jetski, high output alternator, alternator generator and electric motor parts. Product design covers Bosch, Chrysler, Daewoo, Delco, Denso, Ford, Hitachi, John Deere, Kubota, Leece Neville, Letrika (Iskra), Lucas, Magneton, Mando, Marelli, Mitsubishi, Motorola, Nikko, Prestolite, Sawafuji, Valeo, United Technology etc. All starter, alternator and parts are OEM interchangeable as of form, fit and function and are developed and validated based on OEM products. We also offer all related key components such as Armature , Filed Case, Bearing , Filed Coil, Bracket, Frame, Brush, Housing, Brush holder, Kits, Clutch pulley, Pulley, Bushing, Rectifier, Regulator, Cover, Rotor, Stator, Diode, Shift Lever, Drive, Solenoid, Fan etc. The product is with super quality and reason price, and we guarantee one year warranty based on BOL date.
